Description

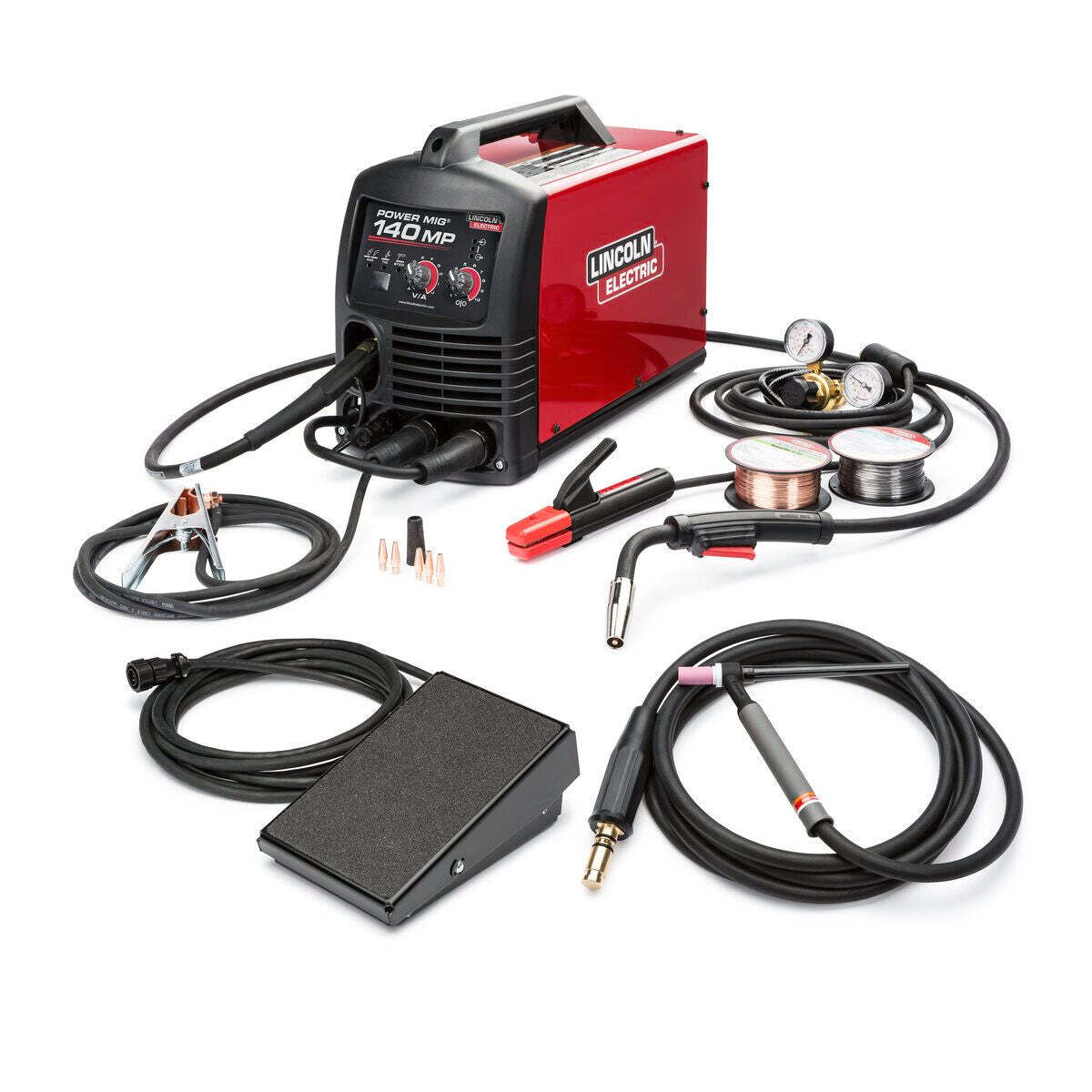

POWER MIG® 140 MP® welder is designed for home projects and repair, sheet metal autobody work, farm and small shop welding.
Features & Benefits
This multiprocess capable unit that is lightweight and portable connects to 120V household power and is an excellent choice for MIG, DC TIG, Stick and Flux-Cored welding.
Versatile Performance- Multiprocess unit capable of MIG welding 30-140 amps, DC TIG welding 10-120 amps, and Stick welding 25-90 amps.
Easy to use- Simple two knob operation for controlling wire feed speed and voltage. Single button allows for easy process selection changes.
Compact Design- Lightweight and portable at 34.5 lbs. Conveniently plugs into household 120V power.
Processes
MIG, Flux-Cored, Stick, DC TIG
Input Power
115/1/60
Input Current
20A
Mode
CC/CV
Polarity
DC
Output Range
30-140A
Rated Output
95A/18.75V/60%
Cored Wire Diameter
0.030 - 0.035 in. (0.8 - 0.9 mm)
Solid Wire Diameter
0.025 - 0.035 in. (0.6 - 0.9 mm)
MIG Wire Feed Speed Range
40 - 500 in. (1.02 - 12.7 m)
Dimensions
10.15in x 14in x 18.6in (258mm x 357mm x 472mm)
Weight
56.5lbs. (25.628kg)
GunMagnum® PRO 100L gun and 10 ft. (3.0 m) cable assembly with brass connection and 8-pin trigger connector (K530-7). .025 in. (0.6 mm) tapered contact tips (Qty 3) .035 in. (0.9 mm) tapered contact tips (Qty. 3) Gasless nozzle for Innershield® welding Gas nozzle for MIG welding Spindle adapter for 8 in. (203 mm) diameter spools .025 - .035 in. (0.6 - 0.9 mm) wire diameter dual track drive roll for MIG and flux-cored welding (KP2948-1) PTA-9 TIG Torch (12.5 ft 1 pc) (K1782-16) Foot Pedal (K4361-1) Shielding Gas ApparatusHarris3000290 Gas Regulator (S25805) and 52 in. (1.3 m) hose (S19303) for use with Ar/ CO2 blend gases. For use with CO2 shielding gas, order a Lincoln Electric S19298 CO2 shielding gas bottle adapter. Welding WireSample spool of .025 in. (0.6 mm) diameter SuperArc® L-56 premium MIG wire Sample) spool of .035 in. (0.9 mm) diameter Innershield NR-211-MP® flux-cored wire OtherWork clamp and 10 ft. (3.0 m) cable Instruction manual Quick Start guide Electrode holder with 10 ft. cable for stick welding
